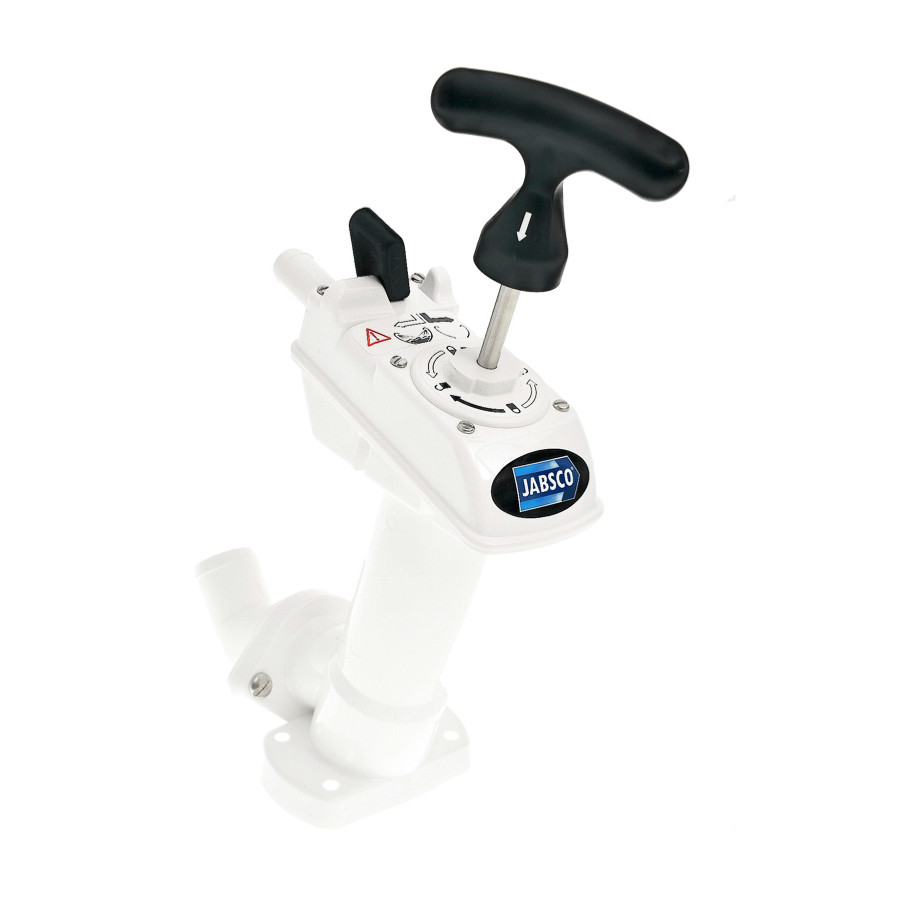

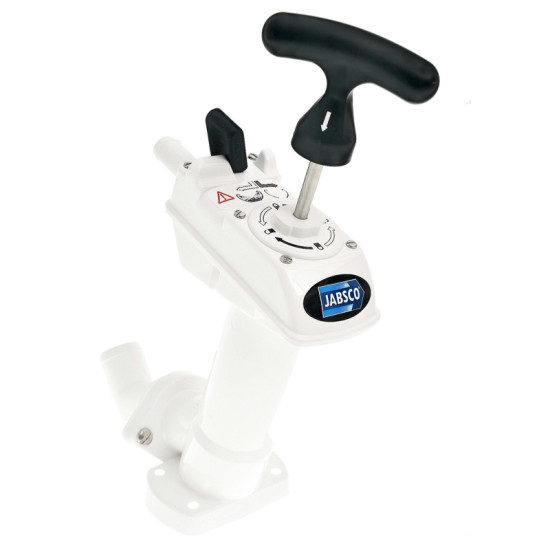

Pump Twist'N'Lock Manual Toilet JABSCO 29090 / 29120 JAB29040-3000

JABSCO complete manual pump for manual toilet, series:

29090 and 29120.

Pump assembly model that uses a modified piston in the discharge device.

At the end of the discharge cycle, the user only has to turn the handle a quarter turn to 90° (piston in lower position closing the discharge valve).

Returning the handle to its service position releases the piston.

Self-priming pump allowing installation below the waterline.

Reversible pump frame offering the choice of right or left-hand mounting - adjustable outlet elbow.

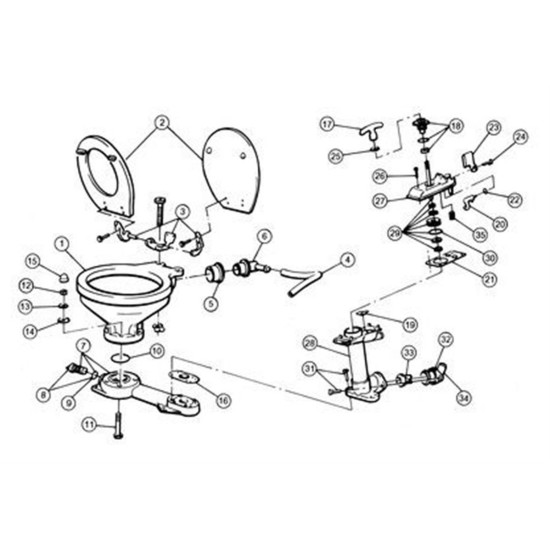

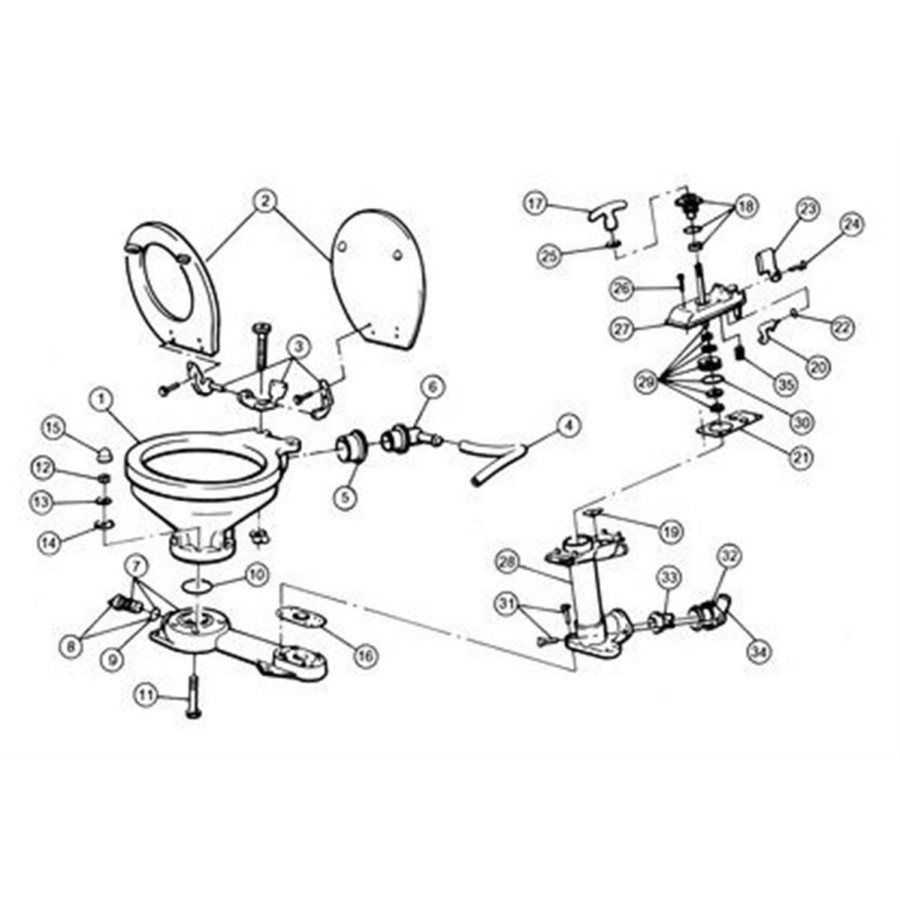

Markings:

16: gearcase valve

17: handle

18: piston rod seal + O-ring

19: upper valve seat

20: cam

21: double-flap seal

22: O-ring (flush lever)

23: flush control lever

24: screw (flush lever)

25: stop

26x6: screw (flap cover)

27: valve cover

28: pump cylinder

29: iston

30: O-ring (piston)

31x3: screw (pump cylinder)

32: drain pipe flange

33: outlet valve

34: outlet pipe

35: valve spring

Reference: JAB29040-3000
