MERCURY Complete Cross Trainer 15 to 50Hp 822344T14

Overview

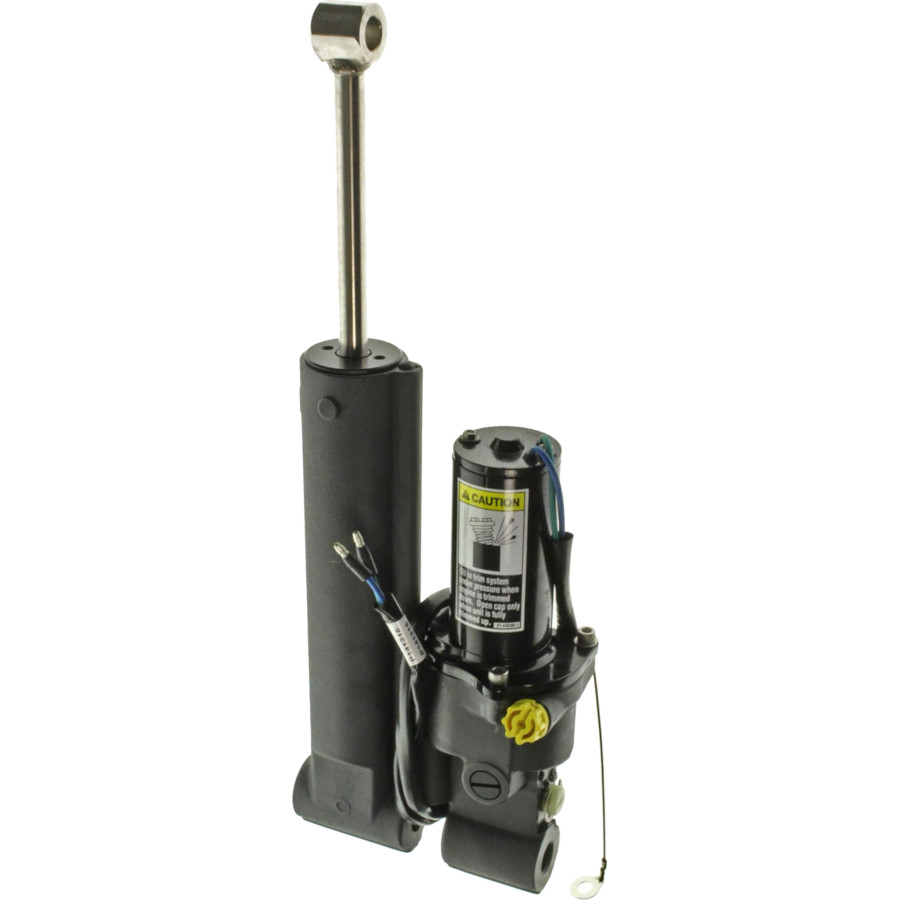

The MERCURY 15 to 50 hp Complete Trim Kit is a fully integrated hydraulic trim system, delivered ready for installation. It combines the electric motor, hydraulic pump, and trim cylinders into a single replacement unit. This solution is recommended when multiple components fail simultaneously, as it optimizes the cost-to-labor ratio compared to repairing each part individually.

Technical Specifications

Mercury Mariner Complete Trim Kit for

• 15, 20, 25, 30, and 40 hp 2-cylinder 2-stroke
• 40 and 50 hp 3-cylinder 2-stroke
• 25, 30, and 40 hp 3-cylinder 4-stroke
• 40, 45, and 50 hp 4-cylinder 4-stroke

Part Number: 822344T14, 822344T10, 822344T5, 822344A5, 822344A3, 822344A1

Please contact us to confirm compatibility.

Recommended operating conditions

Disconnect the power supply before removal. Disconnect the hydraulic hoses and immediately plug the fittings to minimize fluid loss. Remove the tilt pin and the cylinder mounting screws, then install the new assembly following the torque specifications in the Mercury manual. Fill the hydraulic oil reservoir and bleed the system by performing about ten full trim cycles.

Technical Benefits

• Replacement of the entire engine, pump, and cylinder assembly in a single service call
• Eliminates complex diagnostics related to the simultaneous failure of multiple components
• Original hydraulic sealant ensures no leaks from the first start-up
• Certified compatibility with the listed Mercury engines

Usage and Maintenance Guidelines

• Replacement frequency: The complete trim assembly should be replaced in the event of multiple irreparable failures. Estimated service life of 8–15 years depending on operating conditions.
• Best practices: Check the hydraulic oil level at the start of the season. Rinse the housing with fresh water after each use in saltwater.
• Safety precautions: Never manually force the motor cylinders when the power is off. Check the polarity of the electrical connections before turning on the power.

Frequently Asked Questions

What is the difference between a complete trim system and a repair kit?

A complete trim kit replaces the entire hydraulic system. A repair kit contains only wear parts (seals, rods) to service the existing system. The complete trim kit is recommended if the electric motor or pump is also faulty.

Is it necessary to bleed the system after installation?

Yes, bleeding is essential. Fill the reservoir, perform about ten complete trim cycles to remove air from the system, then check the level and top off if necessary.

Is the motor’s serial number required to place an order?

It is strongly recommended. Variations exist depending on the year of manufacture, particularly regarding hydraulic and electrical connections. The serial number prevents any compatibility errors when ordering.
