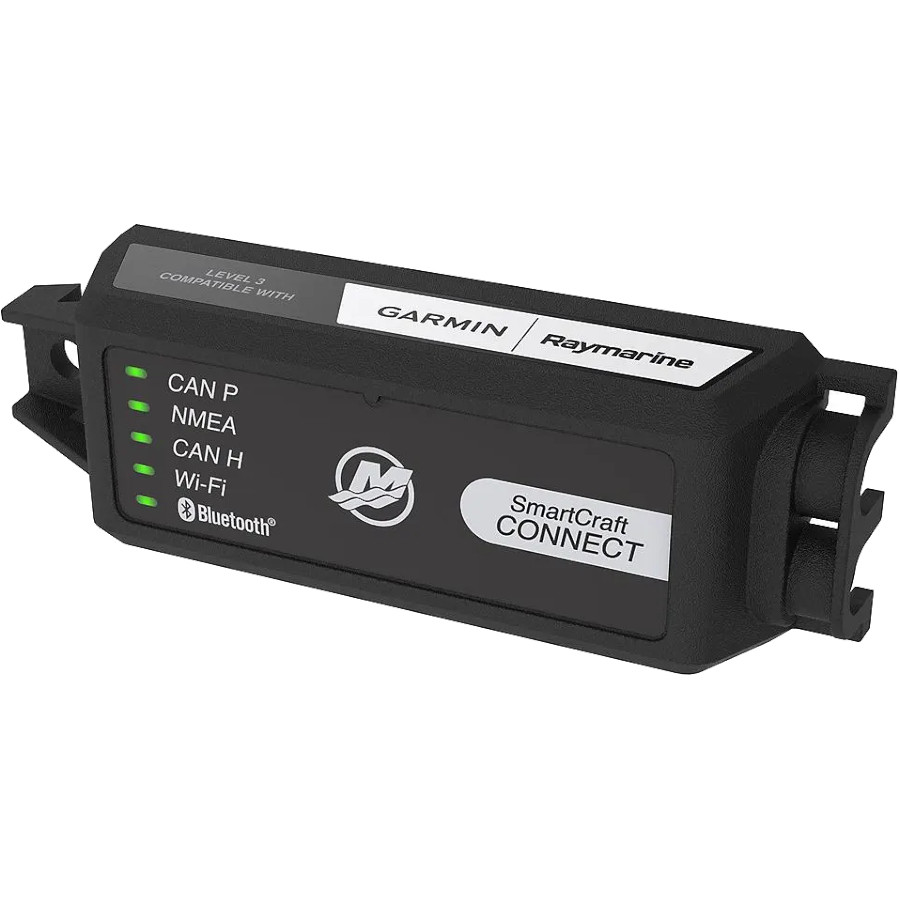

Mercury SmartCraft Connect for Garmin and Raymarine HELM 8M0173694

Mercury SmartCraft Connect 8M0173694 – Single-Engine NMEA 2000 Interface Kit

Optimize your boat management with the Mercury SmartCraft Connect 8M0173694, a smart interface designed to connect your Mercury or MerCruiser engine to a compatible Garmin or Raymarine multifunction display. Thanks to integrated VesselView technology, access all your engine’s essential data in real time directly from your display or the Mercury Marine app.

Key Features

• Real-time engine data display: engine RPM, speed, temperature, fuel consumption, trim, and engine alerts.
• Compatible with VesselView-enabled Garmin and Raymarine multifunction displays.
• Bluetooth® and Wi-Fi connectivity for software updates and data access via the Mercury Marine app.
• Under-cowl installation with Plug & Play design.
• Maintenance tracking, engine history, and data sharing with your Mercury dealer.

Technical Specifications

• Mercury Part Number: 8M0173694
• Type: SmartCraft Connect Under Helm
• Configuration: Single-engine
• Connection: NMEA 2000®, Bluetooth®, Wi-Fi
• Engine compatibility: Compatible with Mercury and MerCruiser SmartCraft engines (depending on year and model).
• Display compatibility: Garmin and Raymarine SmartCraft Connect compatible.

Description

The Mercury SmartCraft Connect 8M0173694 moduletransforms your multifunction display into a true onboard control center. Instantly view engine performance, monitor your fuel consumption, and receive important alerts directly on your Garmin or Raymarine display. Thanks to its built-in wireless connectivity, you can also take advantage of all the features of the Mercury Marine app for maintenance tracking and engine management. An ideal solution for boaters who want to easily centralize their navigation and engine information.

Compatible Displays

• Simrad® marine electronics: NSX®, NSX® ULTRAWIDE, and NSS® 4
• Garmin: All GPSMAP and TD50 models running software version 24.1 or later.
• Garmin: All NMEA2000-compatible ECHOMAP models running software version 17.1 or later.
• Raymarine: All AXIOM chartplotters using Lighthouse 4.1.

Part Number 8M0173694: Under-Helm Mount

• Location: It is installed in a sheltered location, behind the dashboard / under the helm console.
• Wiring: It is designed to be connected to an existing Mercury junction box (4- or 5-way) under the dashboard via a data harness from the engine. It then connects locally to the console’s NMEA 2000 backbone.
• Advantage: Ideal if the boat already has SmartCraft digital gauges on the dashboard (such as SC1000 speedometers) because the entire installation is done at the console, without opening the engine cowling.
