Mercury SmartCraft Connect for Garmin and Raymarine COWL 8M0173704

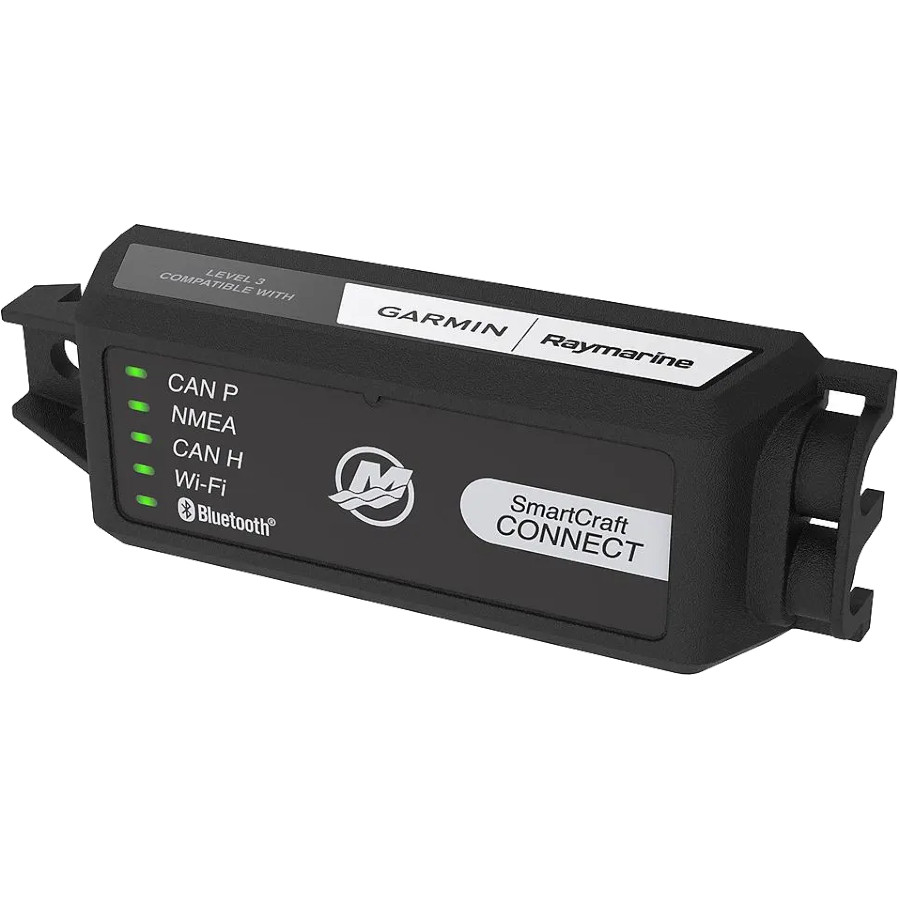

Mercury SmartCraft Connect 8M0173704 – Single-Engine NMEA 2000 Interface Kit

Optimize your boat management with the Mercury SmartCraft Connect 8M0173704, a smart interface designed to connect your Mercury or MerCruiser engine to a compatible Garmin or Raymarine multifunction display. Thanks to integrated VesselView technology, access all essential engine data in real time directly from your display or the Mercury Marine app.

Key Features

• Real-time engine data display: engine RPM, speed, temperature, fuel consumption, trim, and engine alerts.
• Compatible with VesselView-enabled Garmin and Raymarine multifunction displays.
• Bluetooth® and Wi-Fi connectivity for software updates and data access via the Mercury Marine app.
• Under-cowl installation with Plug & Play design.
• Maintenance tracking, engine history, and data sharing with your Mercury dealer.

Technical Specifications

• Mercury Part Number: 8M0173704
• Type: SmartCraft Connect Under Cowl
• Configuration: Single-engine
• Connection: NMEA 2000®, Bluetooth®, Wi-Fi
• Engine compatibility: Compatible with Mercury and MerCruiser SmartCraft engines (depending on year and model).
• Display compatibility: Garmin and Raymarine SmartCraft Connect compatible.

Description

The Mercury SmartCraft Connect 8M0173704 module transforms your multifunction display into a true onboard control center. Instantly view engine performance, monitor your fuel consumption, and receive important alerts directly on your Garmin or Raymarine display. Thanks to its built-in wireless connectivity, you can also take advantage of all the features of the Mercury Marine app for maintenance tracking and engine management. An ideal solution for boaters who want to easily centralize their navigation and engine information.

Compatible Displays

• Simrad® marine electronics: NSX®, NSX® ULTRAWIDE, and NSS® 4
• Garmin: All GPSMAP and TD50 models running software version 24.1 or later.
• Garmin: All NMEA2000-compatible ECHOMAP models running software version 17.1 or later.
• Raymarine: All AXIOM chartplotters using Lighthouse 4.1.

Why choose the SmartCraft Connect 8M0173704 module?

• Seamless "Under-Cowl" Integration: This model installs discreetly under your engine cowl, freeing up valuable space at the helm and eliminating the need to run complex cables through the hull.
• Real-time data on your GPS: No need for dedicated Mercury gauges. View your charts and key engine data simultaneously.
• Wireless connectivity (Wi-Fi & Bluetooth): Equipped with wireless technologies, the module can be configured in just a few clicks via the Mercury SmartCraft Manager mobile app (iOS and Android). This also makes future software updates a breeze.

Part Number 8M0173704: Under-cowl mounting

• Location: It mounts directly inside the engine, under the cowl (the "hood" or "grille").
• Wiring: It includes a dedicated terminating resistor. It plugs directly into the engine’s 10-pin SmartCraft connector. From there, simply run a standard NMEA 2000 network cable from the engine to the dashboard.
• Advantage: Ideal if the dashboard does not yet have a Mercury data network (no junction box under the console) or for streamlined setups.
