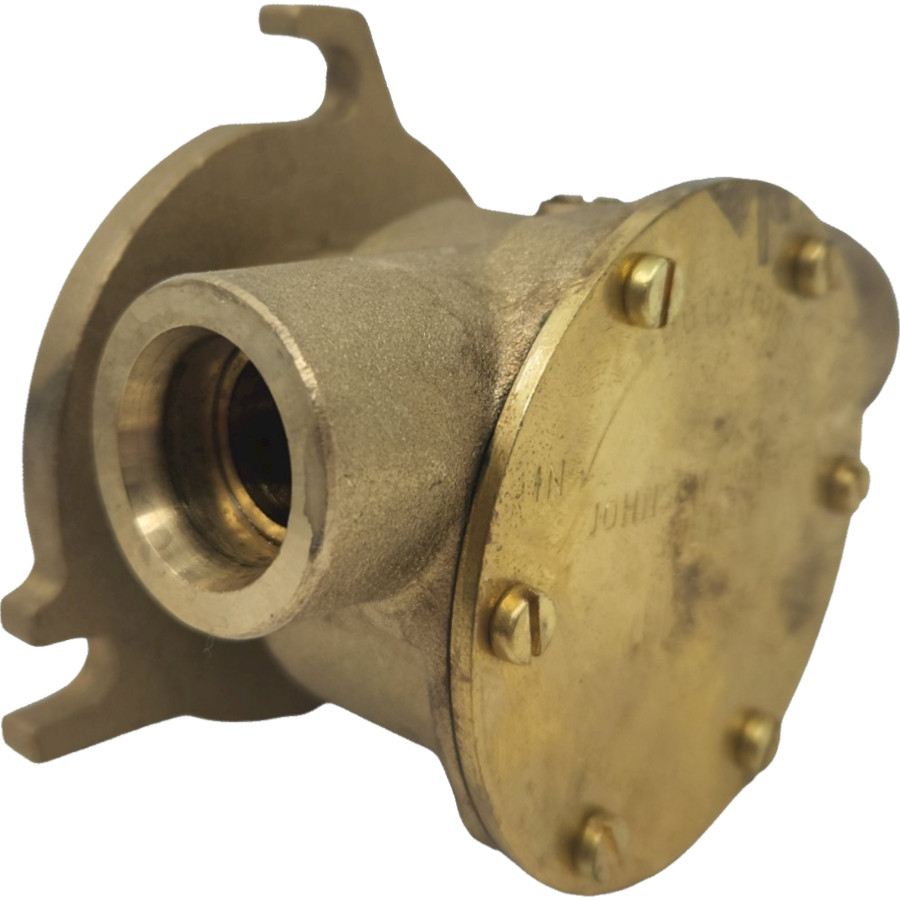

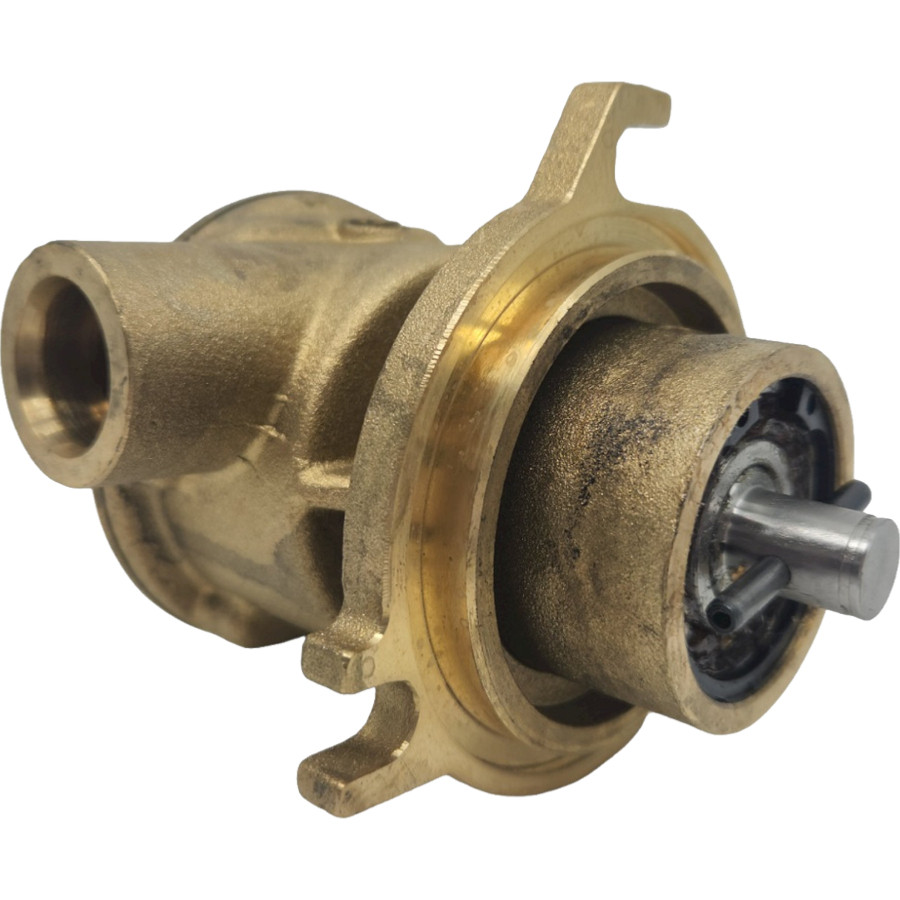

VOLVO 2003T seawater pump JOH10-24268-4

F5B Seawater Pump

SPX FLOW Johnson Pump Marine is a leading supplier of original equipment pumps to the world's largest manufacturers of inboard engines. The F series engine cooling pumps are available in several different styles and sizes to meet different cooling system requirements. Flange-mounted pumps that mount directly to the engine and crankshaft pulley-mounted pumps are available for a wide variety of engines.

Features:

Self-priming, a dry pump can lift water up to 3 meters deep. This means that a flexible turbine pump used for engine cooling does not need to be placed below the waterline or primed manually.

Flexible turbine pumps can pass fairly large solids without clogging or damaging the pump. This reduces the need to filter the incoming fluid.

For general freshwater or raw water applications, the standard long-life neoprene rubber turbine is used. All flexible turbine pumps should not run dry for more than 30 seconds. Both the turbine and seals depend on water for lubrication and will quickly fail if run dry.

Features:

• Référence 10-24268-4
• Pump body: Bronze
• Drive: Motor-mounted pulley
• Impeller: 09-1027B
• Replaces: Johnson 10-24268-1, Volvo 858150

This replacement water pump is suitable for the following Volvo Penta engine models: 2003T

For reassembly, it is necessary to order:

• 1x O-ring 925093 between the engine block and the seawater pump
• 2x 418411 sealing rings for seawater inlet and outlet pipes
