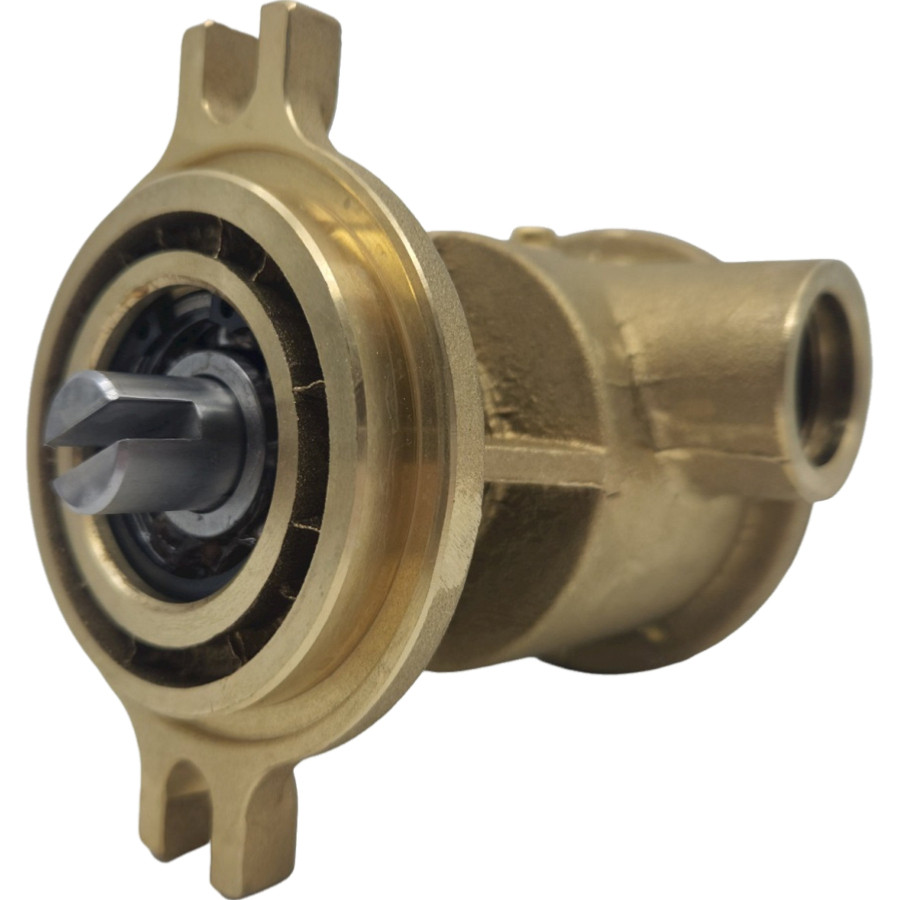

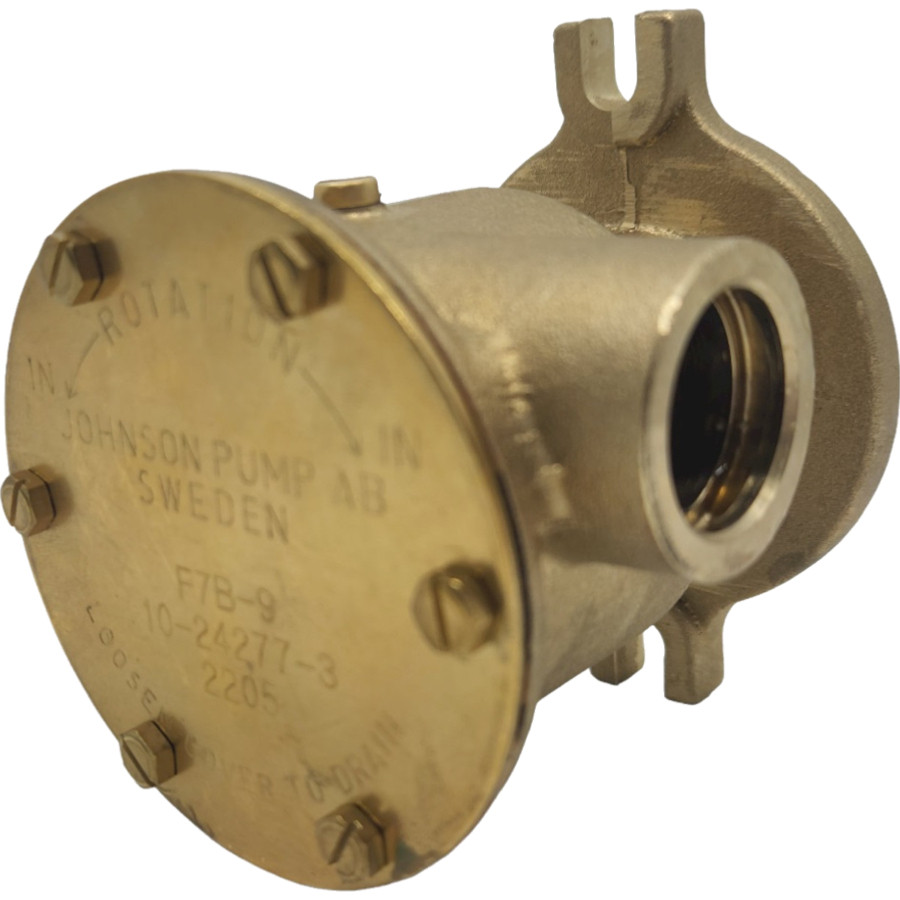

Seawater pump for VOLVO Diesel 31 and 41 JOH10-24277-3

SPX FLOW Johnson Pump Marine is one of the main suppliers of original equipment pumps for the world's largest inboard engine manufacturers. The F-series of engine cooling pumps are available in several different styles and sizes to meet the various needs of the cooling system. Flanged pumps that mount directly on the engine and crankshaft pulley-mounted pumps are available for a wide variety of engines.

Characteristics:

Self-priming, a dry pump can lift water from a depth of up to 3 meters. This means that a flexible impeller pump used for engine cooling does not need to be placed below the waterline or primed manually.

Flexible impeller pumps can pass fairly large solids without clogging or damaging the pump. This reduces the need to filter the incoming fluid.

For general fresh or raw water applications, the standard long-lasting neoprene rubber impeller is used. All flexible impeller pumps should not run dry for more than 30 seconds. Both the impeller and the seals depend on water for lubrication and will quickly fail if run dry.

Specifications:

Reference 10-24277-3

Pump body: Bronze

Flange mounting

Impeller: 09-1028B

Replaces: Volvo 858469, 858701

This replacement water pump is suitable for the following Volvo Penta engine models:

MD31A, TMD31A, TMD31B, TAMD31A, TAMD31B, AD31, AQAD31A, AD31B
