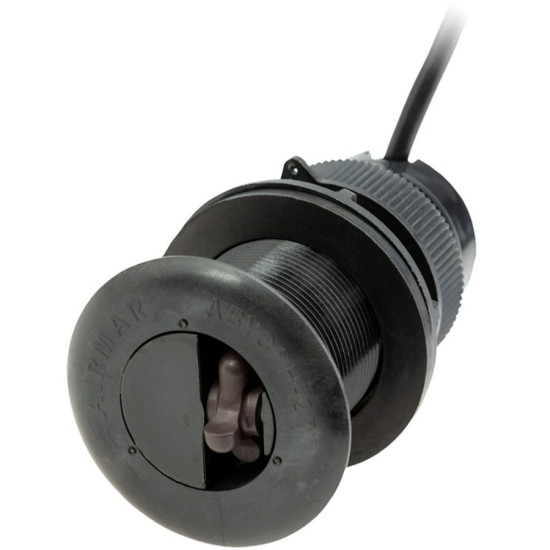

DST810 Speed, Depth, Temperature Probe NA662
Brand :
B&G
Please note that this item can only be returned or exchanged under special conditions. Do not hesitate to contact us if you wish to have confirmation of the application.
Description DST810 Speed, Depth, Temperature Probe
DST-810 Active Transducer Depth, Speed, Temperature
The DST810 stores configurations and transmits data to the NMEA 2000® network.
Features
- Acoustic urethane
- Hull angle Up to 22°
- Data update rate depth 1X/second
- Data update rate 5X/second
- Attitude accuracy +/- 1° nominal after sensor calibration
- Depth frequency 235 kHz
- Minimum depth range 0.5 m (1.6')
- Maximum depth range up to 100 m (330') NMEA 2000®
- Speed range Up to 45 knots
- Nominal pressure 3 m (10')
- Pulse rate 20,000 p/nm* (5.6 Hz per knot)*p/nm = pulses per nautical mile
- Supply voltage 9 VDC to 16 VDC via NMEA 2000
- Supply current <200 mA per NMEA 2000®
- Wireless protocol Bluetooth Low Energy (BLE)
- Wireless range up to 30 feet depending on mounting location
- Standard cable length 6 m (20') DeviceNetNMEA 2000®
- Temperature sensor accuracy +/-0.5°C (+/-1.8°F)
- Temperature sensor range -10°C to 40°C (14°F to 104°F)
- NMEA 2000 load equivalence number (LEN) 3
Part number: 000-15735-001
