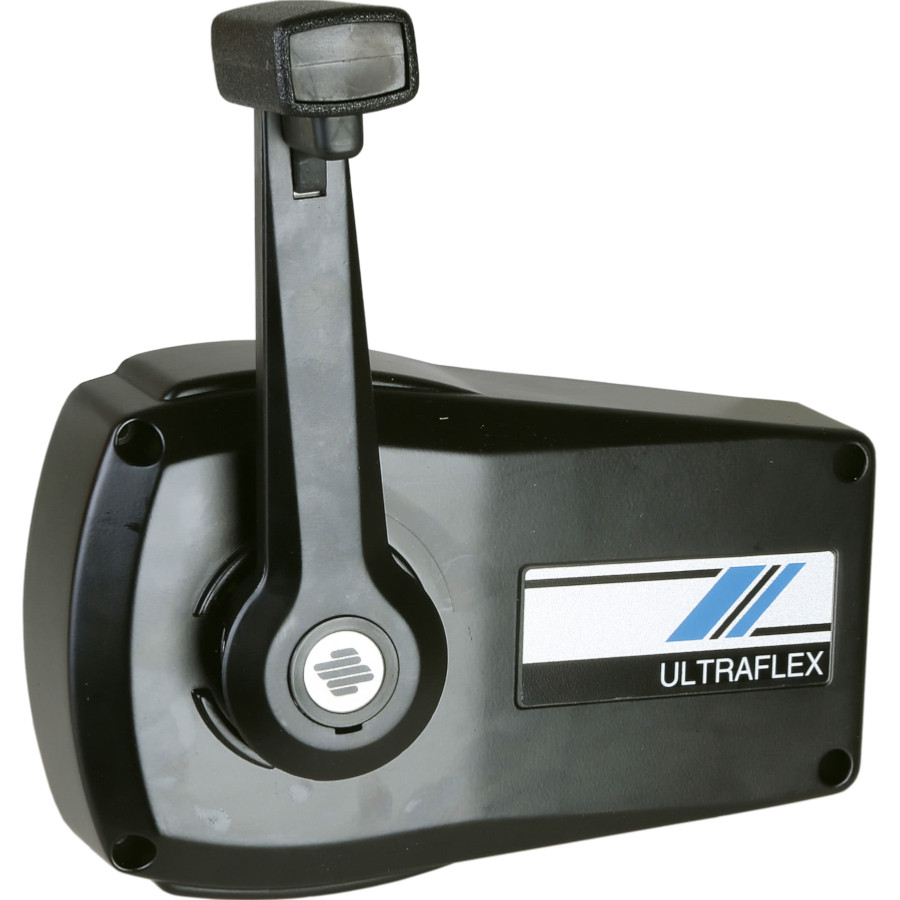

B90 Single-lever side control unit B-90

ULTRAFLEX B89 / B90 SINGLE-LEVER CONTROL UNIT

• Single lever control box with dual action to operate both the accelerator and the reverser.
• Suitable for all types of boats with outboard, inboard or sterndrive engines.
• Allows easy and safe engine shifting, preventing accidental engagement unless the engine is idling
• Can be installed horizontally or vertically, on the starboard or port side of the boat
• Made of varnished marine aluminum
• The pull-out handle allows the inverter to be disconnected for engine warm-up
• The neutral safety switch X12 34543Q (optional) prevents the engine from starting when it is not in neutral
• Complies with EN ISO 11547 standards when safety switch X12 is installed
• Equipped with a neutral safety lock to prevent accidental engagement of the reverse gear

• Use with standard C8 or 33C SAE cables with threaded ends.

Mercury Gen 1, 600A type C5, C16 cables require the K35 connection kit 34730U.

Johnson-Evinrude 479, CC205 type C14 cables require the K51 connection kit 32526N

Reference: 36152H, YMM-21100-10-00
