Description Level 1 Gauge 1.25 BSP 0-190 Ohms 250mm long
Gasoline Gauge
- Length 250 mm
- Mounting Ø 1"1/4 BSP
- Outer diameter of flange 54 mm
- 0-190 Ohms
S3 gauges are available in fixed dimensions measured from the top of the thread. The free space between the bottom of the tank and the bottom of the gauge increases the reserve volume.
Operating temperature: -40°C to +70°C.
Power supply: 12/24 V.

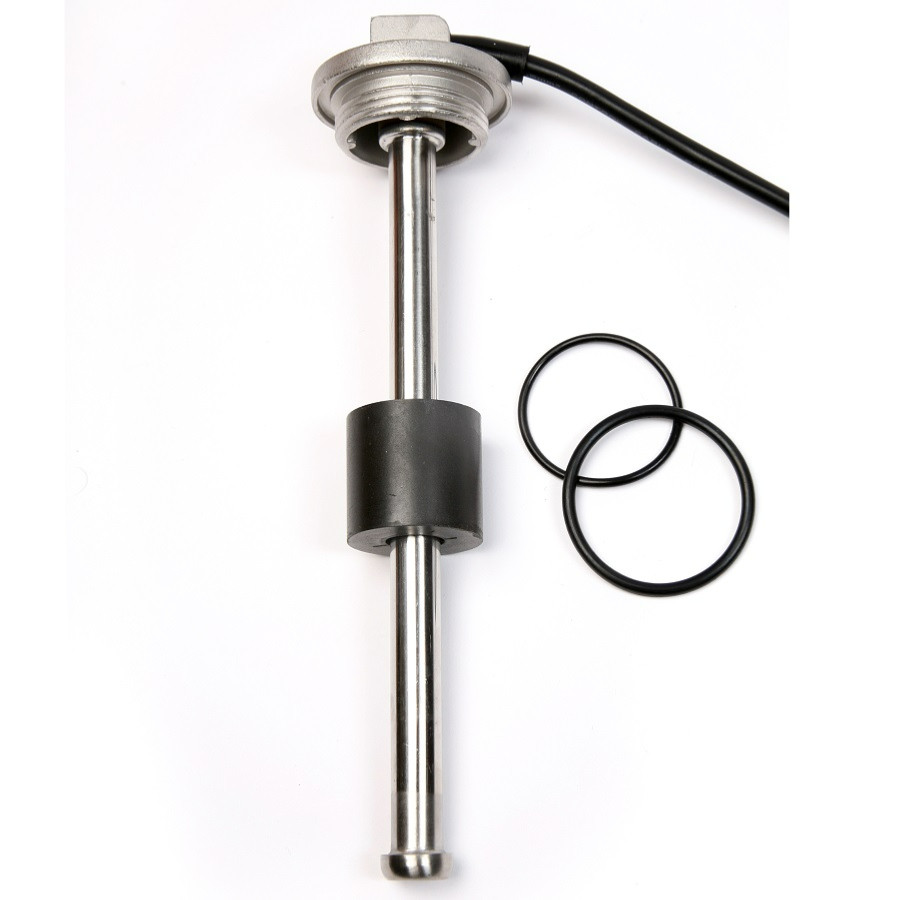

In the WEMA system, the electrical contacts placed inside a sealed tube are opened or closed by the passage of a magnetic float circulating on the tube
