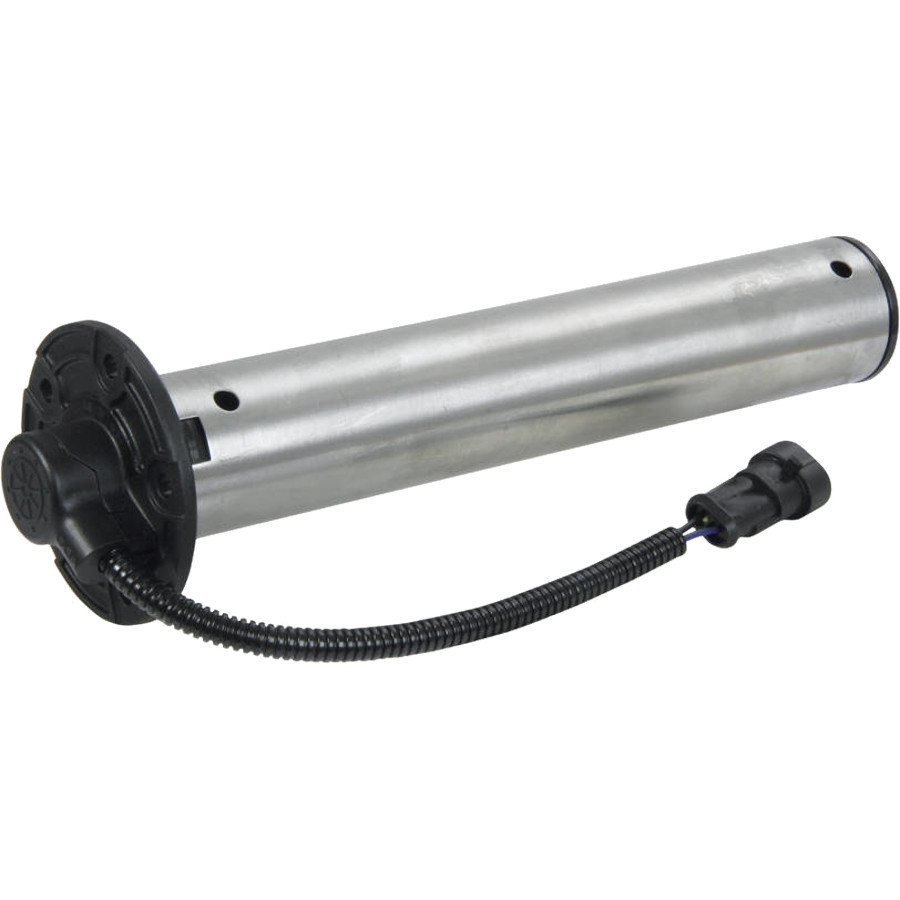

Description VDO 90-5 Ohm 310mm Tubular Gasoline Transmitter
VDO Tubular Fuel Gauge
- Tube length: 310 mm ± 2.0 mm
- Mounting flange: 5 SAE holes Ø 54 mm
- Flange diameter: 71 mm
- Gauge tube diameter: 40 mm
- Operating temperature: -25°C to +65°C
- Electrical characteristics Operating voltage: 6 - 24 V DC
- Empty tank resistance: 90 Ohms
- Resistance when tank is full: 1 to 5 Ohms
- Alarm contact: None
Reference: A2C1750250001
Other lengths available on request from 160 to 1100 mm.
