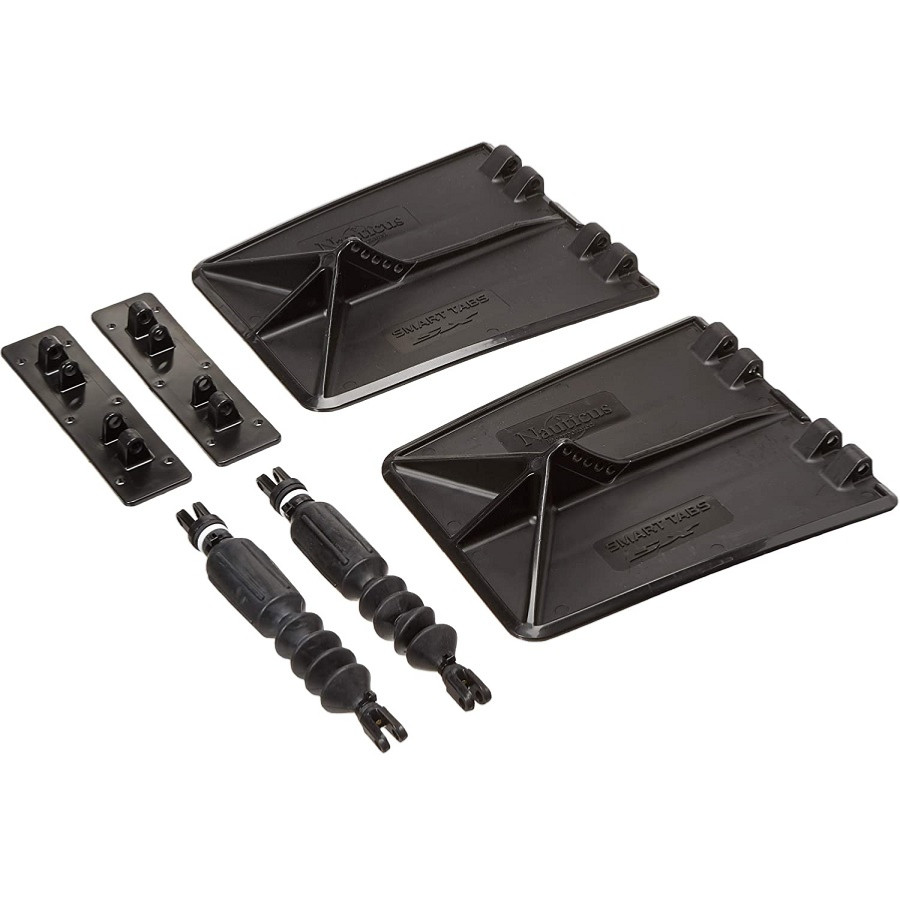

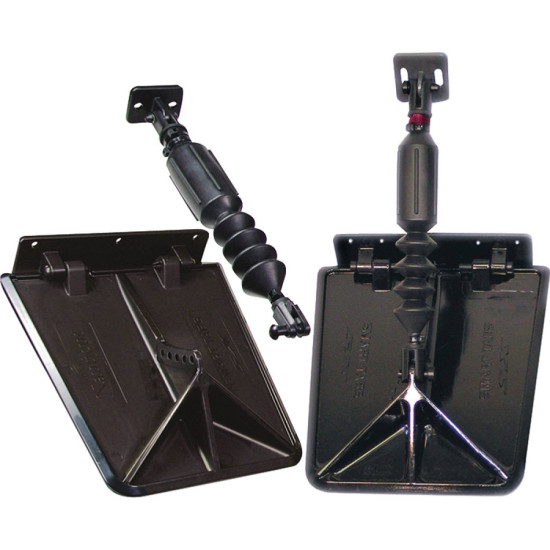

Smart Tabs SX automatic trim tabs for 21-25' boats and 200-300HP engines GS40055

SMART TABS SX10512-90 Automatic Flaps

• For boats from 6.50 m to 8.00 m
• Max. power: 300 HP
• Dimensions of blades: 27 cm x 30 cm
• Jack force: 41 kg

IMPROVES THE OVERALL PERFORMANCE OF YOUR BOAT

Why buy a set of manually adjustable trim tabs when you can get automatic trim tabs that will adjust themselves and improve performance for less money.

The SX series incorporates all the fully automatic features of our popular SMART TABS, in addition to the rust and corrosion protection benefits of molded composite materials. Assembly can be completed in seconds and installation in minutes. The only tools required are a drill with a 5mm drill bit and a Phillips screwdriver. SMART TABS SX offer unrivaled performance and durability without maintenance in fresh or salt water. The system can be specifically adjusted to maximize the performance of any motorboat, and TRACKING RIBS have been added to improve maneuverability at higher speeds.

Our revolutionary trim tab technology is fully automatic and requires no operator adjustment while underway. Nauticus trim tabs adjust automatically according to how you load and maneuver your boat.

The nitrogen gas actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator's rated load and the trim plate setting, which is made at the time of installation.

Reduce the minimum planning speed to 33%

• Faster acceleration
• Increase top speed
• Provides a level and more comfortable ride at lower speeds
• Improve gasoline economy, maneuverability and safety

NO HYDRAULICS - NO ELECTRICAL SWITCHES

Nauticus trim tabs are fully automatic requiring no operator adjustment while underway.

The nitrogen gas actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator's rated load and the trim plate setting, which is made at the time of installation. (see assembly instructions).

SPEED CONTROL

Nauticus trim tabs start in a downward angel to maximize lift at slow speeds. As the boat accelerates, the water pushes on the trim plates, allowing the stern to be lifted, minimizing bow rise and allowing the boat to plane quickly.

Once the water pressure exceeds the rated load of the actuator (maximum lift), the trim tabs move to a horizontal position, eliminating any drag.

BOAT STABILIZERS

Even when cruising, SMART TABS continue to function as shock absorbers. Constant adaptation to sea conditions allows SMART TABS to offer remarkable stability when cornering, crossing waves, cruising and running at maximum speeds. No more slipping, porpoising or walking the dog.

UNIQUE IN ITS KIND

The unique system is the only one of its kind in the industry. The internal valve system is truly "intelligent" in its design to control the performance of your boat.

It will reduce the minimum planing speed by 33%. Provides a more comfortable ride at low speeds. Improves economy, maneuverability and safety

As the boat's speed increases, so does the water pressure. Once the water pressure exceeds the rated load of the actuator (maximum lift period), the trim tabs begin to move upward until they are horizontal with the bottom of the boat.

The internal valve system dampens the trim plate movement, eliminating any instantaneous reaction to minor variations in water pressure. Nauticus trim tabs provide smooth, undetectable reaction at boat speed, creating a more comfortable level, one turn at lower speeds.

INSTALLATION IS SIMPLE

With an electric drill, a small drill bit, a Phillips screwdriver and two wrenches, almost anyone can install SMART TABS in less than an hour. Professional installers should be able to install SMART TABS in 30 minutes or less.

All mounting hardware, instructions and templates are included.

SMART TABS DO NOT REQUIRE DRILLING THROUGH THE SHELL
