Ultraflex T91 Steering Unit T91
Brand :
Ultraflex
Please note that this item can only be returned or exchanged under special conditions. Do not hesitate to contact us if you wish to have confirmation of the application.

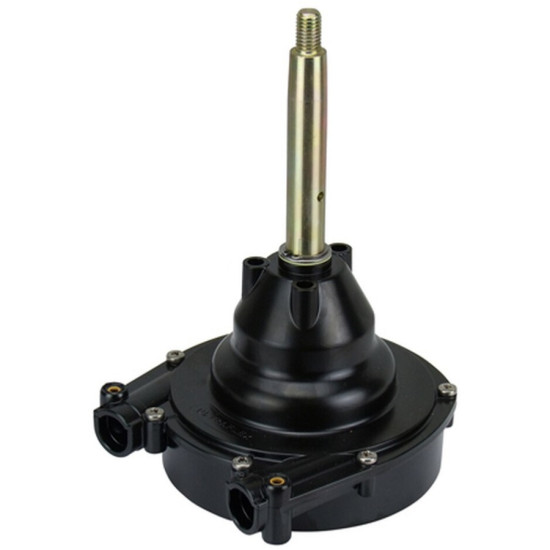

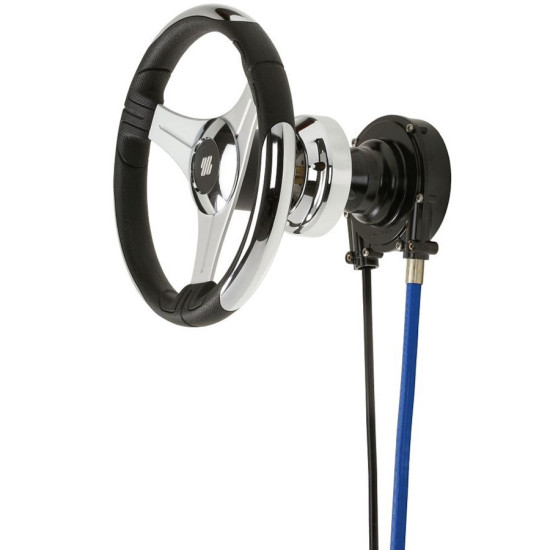

Description Ultraflex T91 Steering Unit
Ultraflex T91 housing.
- Suitable for: Outboard, inboard and stern-drive engines up to 235 hp
- Key for flywheel not supplied, included in the assembly kit to be ordered separately
- 3 gearbox around the maneuvering axis
- Extremely flexible, as efficient as hydraulic steering
- Specially designed for high-performance and high-efficiency applications
- Steering wheel turns from lock to lock: approx. 4.2
- Quick connection, simple installation, patented end piece.
- Stainless steel cable outlet end with patented seal, on motor side
- Corrosion-resistant materials
- Particularly suitable where clearance is limited
- Optional 90° or 20° installation
- Standard 3/4 (19 mm) tapered shaft
- Maximum authorized flywheel diameter: 16" (406 mm)
- Minimum feedback
- Requires T02 or SSC62 cables
Reference: 42647S
Ultraflex is a leading brand of steering and control systems for the marine sector.
