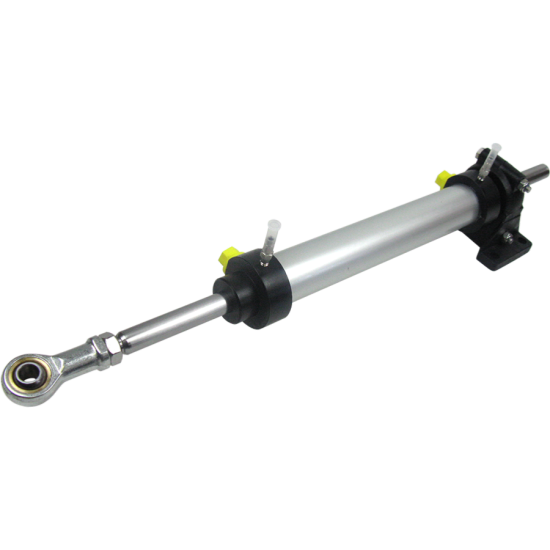

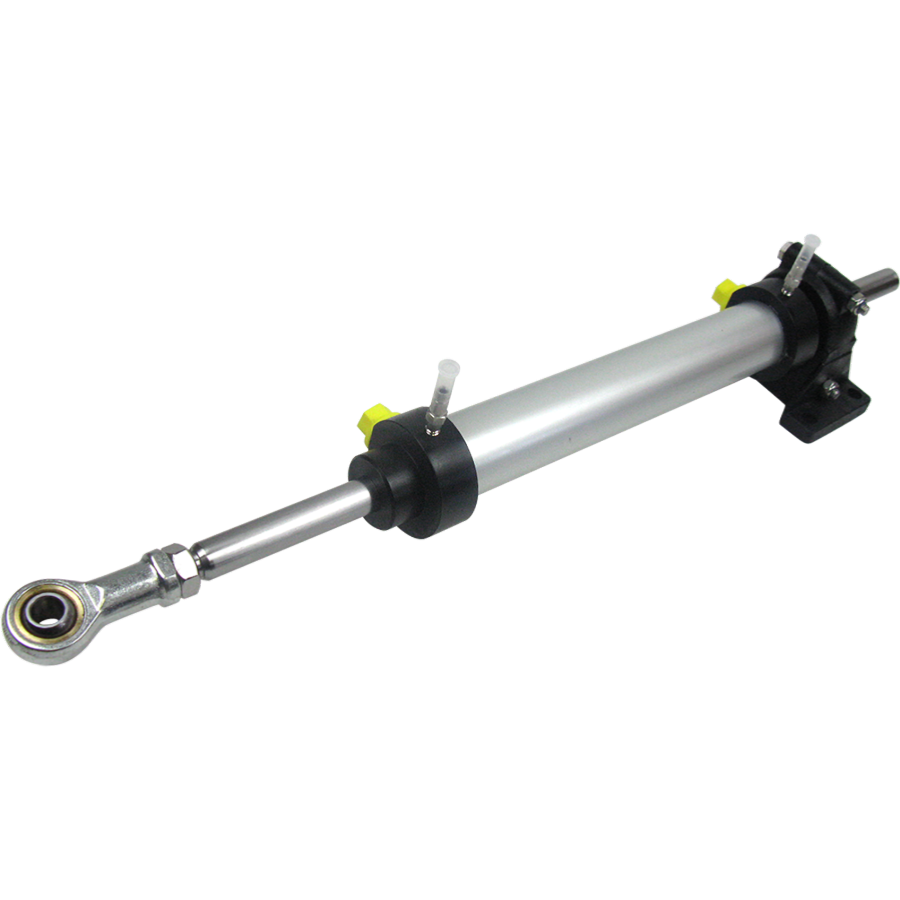

LS VHM 28 DTP steering cylinder 52200051

The LS VHM 28 DTP cylinder is ideal for inboard motor boats up to 30 m.kg.

• Stroke: 150 mm
• Volume: 69.2 cm³
• Maximum torque: 30 m.kg
• Maximum pressure: 50 bar
• Shank radius: 129 mm
• Total rudder angle: 70°
• Reference 2200051

LS hydraulic cylinders are key components for steering inboard engines: they improve the safety, maneuverability, precision, and comfort of boat handling, while reducing the physical effort required to maneuver the boat. The steering pump supplies oil to the hydraulic cylinder, generating a force that allows the rudder to be turned. LS hydraulic cylinders for inboard motor boats offer fast and precise steering response. Thanks to its design and choice of materials, the LS hydraulic cylinder is a reliable product that requires little maintenance. Its compact size makes it easy to install. LS products are guaranteed for 2 years and comply with European regulations.
