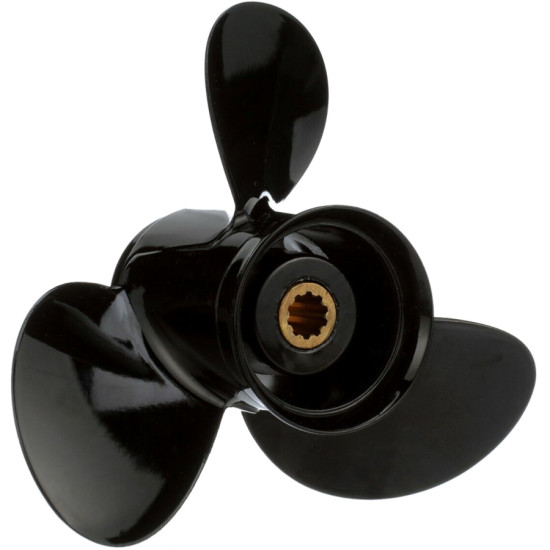

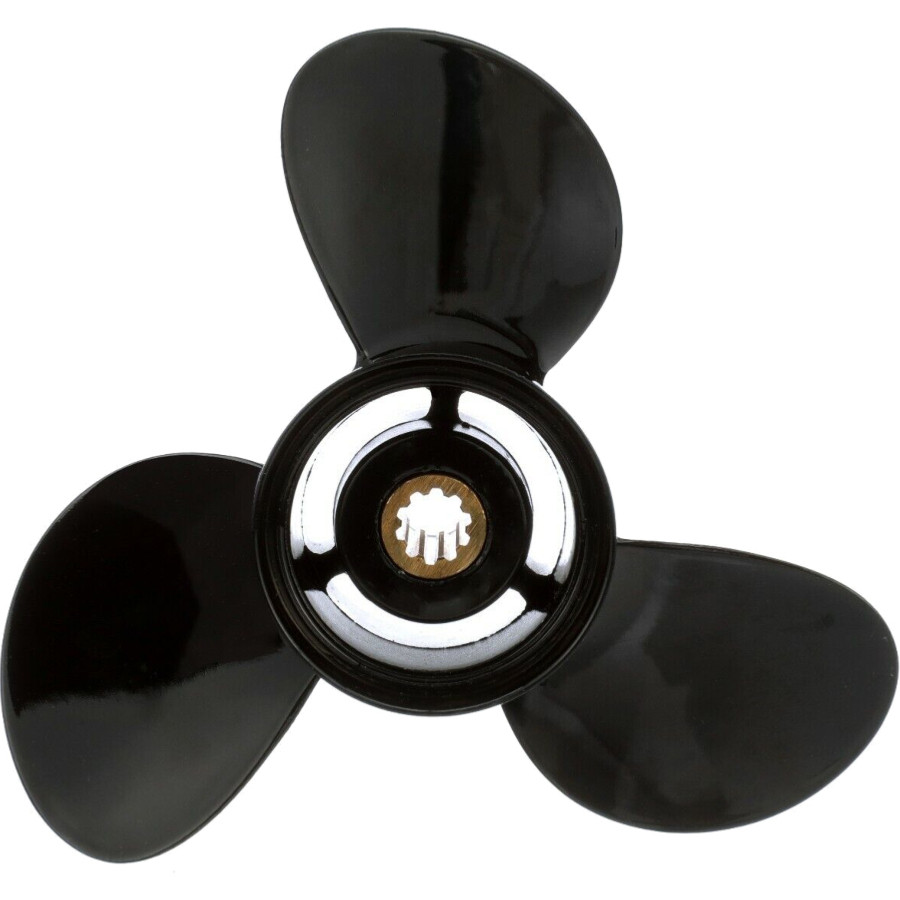

BLACK MAX MERCURY TOHATSU 3-blade propeller 25 to 30 hp QA2190R--896890A10

BLACK MAX 3-blade propeller, 10 splines

• MERCURY 25 and 30 hp 4-stroke 3-cylinder (from 2006) standard base
• MERCURY 25 and 30 hp 2-stroke 2-cylinder number 0Nxxxxxx
• TOHATSU 25 and 30 hp 2-stroke 2-cylinder and 3-cylinder
• TOHATSU 25 and 30 hp 4-stroke 3-cylinder

References and dimensions:

896890A10 - QA2190R: 10 x 8 RH for engines with a base ratio of 1.92
896892A40 - QA2192R: 9.75 x 9.5 RH for engines with a base ratio of 1.92
896896A40 - QA2196R: 9.50 x 11 RH for engines with a base ratio of 1.92
896900A40 - QA2200R: 9.25 x 12.5 RH for motor with base ratio 1.92
8M0185635: 10.7 x 10 RH for engines with a base ratio of 2.17 from 2022 onwards
8M0185636: 10.7 x 11 RH for engines with a base ratio of 2.17 from 2022 onwards
8M0185637: 10.6 x 12 RH for engine with base ratio 2.17 from 2022
8M0185638: 10.5 x 13 RH for motors with a base ratio of 2.17 from 2022 onwards
