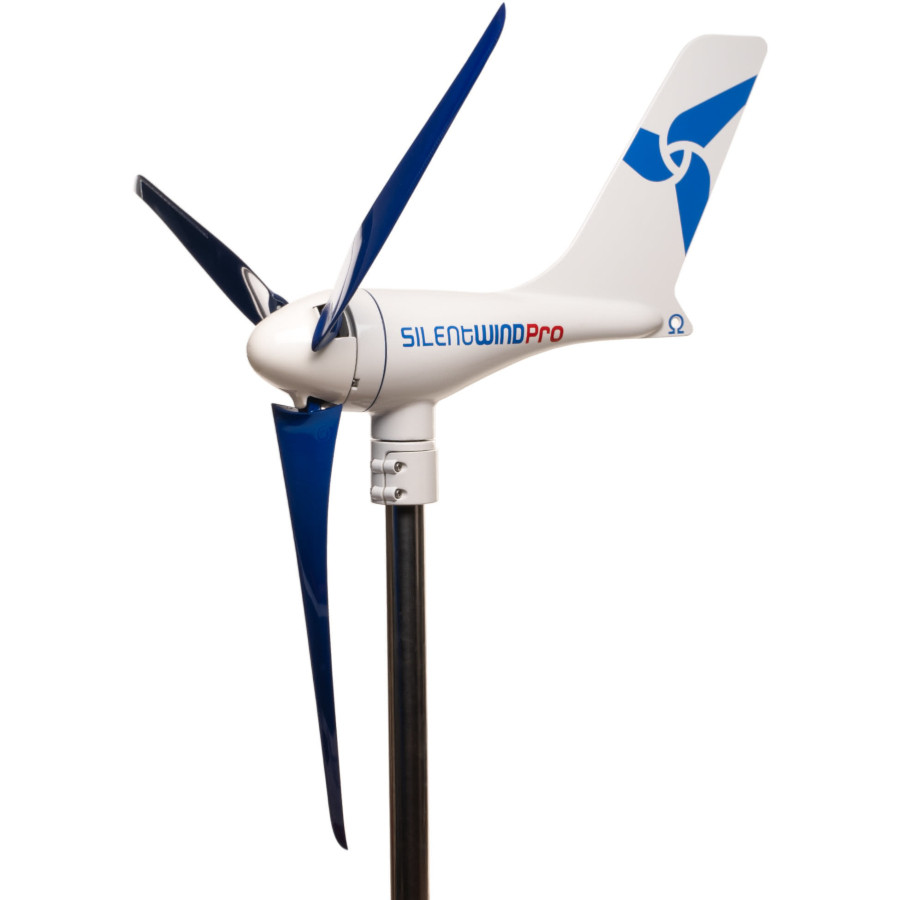

SilentWind Pro 12V 400W wind turbine with MPP controller SI-SW12-PRO

A NEW GENERATION OF ECO-FRIENDLY, QUIET WIND TURBINES

With its wind turbines equipped with a magnet generator, discreet carbon blades and a hybrid regulator that can also accommodate solar panels, SilentWind offers you a new generation of wind turbines that are light, quiet, efficient, safe and innovative, enabling you to optimize the electrical energy on board.

This wind turbine was designed by sailors for sailors. It is characterized by high performance, even in low winds. It is suitable for all weather conditions. Directional stability even in heavy seas, perfect watertightness, marine-quality bearings and low blade noise. It operates silently regardless of wind strength.

A hybrid charge controller with Bluetooth interface (Android and iOS compatible) and multi-stage charging are included in the delivery. In addition, it also allows the connection of a 300 W (Wp) solar module. Its consumption is only 20 mA. It can charge lithium, AGM, gel and lead-acid batteries. A large backlit LCD display shows all relevant information.

Boost function

Maximum power point (MPP) control is of little technical interest for small wind turbines. However, an adjustable boost function increases the charging capacity in low wind conditions. This function also optimizes high wind capacity. The boost function setting affects the inertia (notch torque) in such a way that, for example, current generation is ensured in low wind conditions.

Bluetooth function

The backlit LCD screen of the controller displays all useful data, as well as the status of Android and iOS mobile devices connected via Bluetooth. The necessary settings can be made from a device connected to the Bluetooth interface.

Stop function

The SILENTWIND PRO wind turbine stops automatically when the battery is charged, or the rotation speed is significantly reduced to switch to charge maintenance mode. This way, only enough energy is used for the battery and self-discharge is avoided. The wind turbine can be stopped manually using the keys located under the display and also by means of a remote control button connected to the port provided for this purpose. An LED light confirms that the Stop function has been activated.

General characteristics:

3-phase, alternator with high performance

Carbon blades, UV resistant.

Silent

Long-range external antenna

Extremely light - 6.8 kg

Increased performance

Fast charge start-up

Highly resistant to strong winds.

Universal use at low, medium and high speed.

Low maintenance

Supplied with an external MPPT hybrid charge controller with an LCD screen to display all useful data such as W, A, V, Ah, kWh. Can be connected to a 400 Wp solar panel.

Technical details:

• Diameter 1.15 m

• Material Hand-laminated carbon

• Blade weight 150 g / blade

• Nominal voltage 12 V DC

• Power 420 watts

• Speed range 550-1700 rpm

• Total weight:

  6.8 kg

• Diameter of the tube:

  48 mm
