Description MERCURY 20 to 60 hp tail pulley

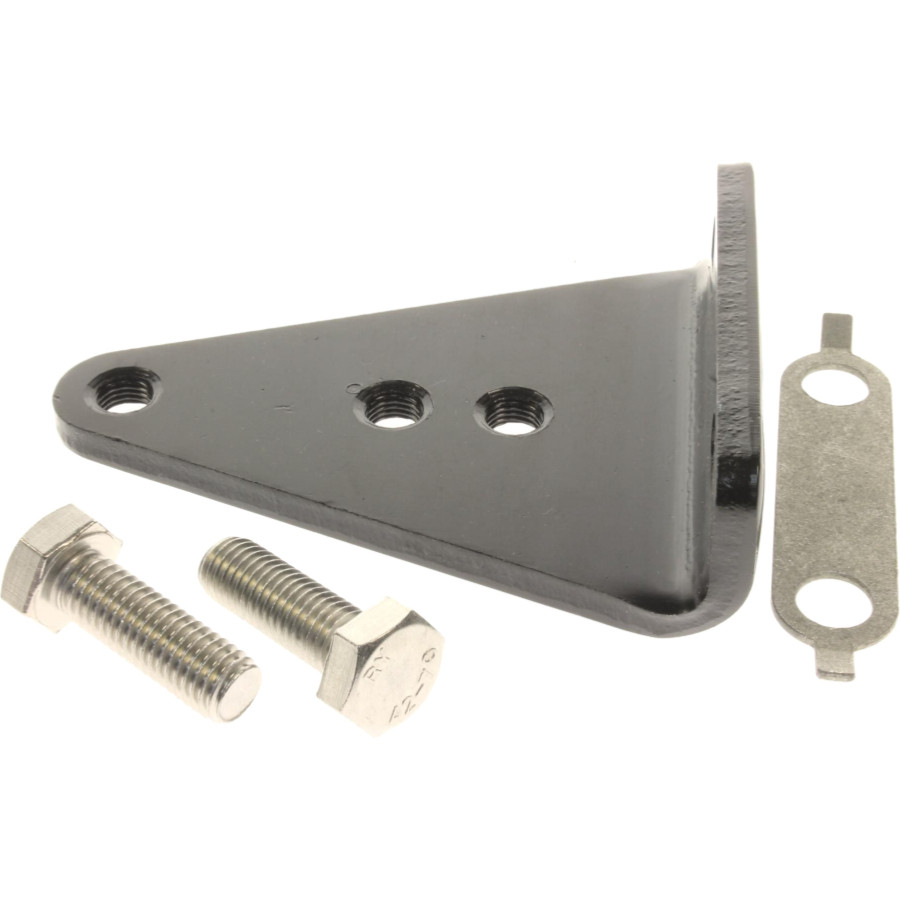

Steering bracket for Mercury Mariner 20 to 60 hp 2 and 4 stroke
Reference: 816667A2
Replaces 816667A1, 816667, 893696, 8M0184092, 816667F3, 816667F2, 816667T, 816667T6
The bracket has a center-to-center distance of 48 mm between the two mounting holes on the engine
The width is 80 mm and the total length is 104 mm.
The three threaded mounting holes for the steering are positioned at 33, 51, and 93 mm from the mounting surface, respectively
Discover the ultimate in marine precision with Mercury Mariner. When it comes to nautical spare parts and marine innovation, Mercury has established itself as a benchmark, combining reliability with technical advances.
