Lecomble & Schmitt

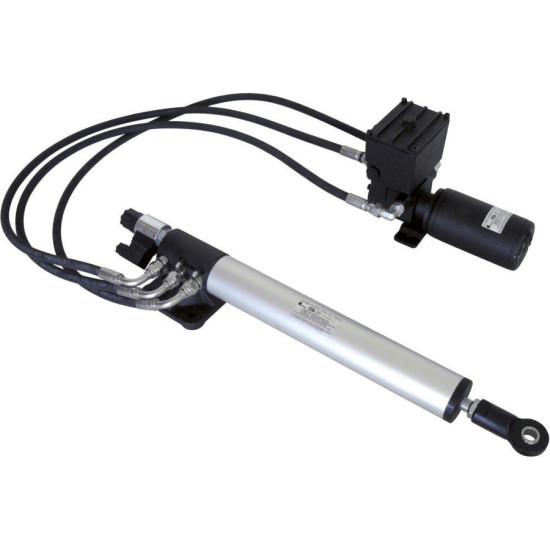

Description 40ST 16 hydraulic ram for automatic pilot
Hydraulic cylinder for automatic pilot
Linear unit 40ST 16
- RV2 pump with reservoir
- Thrust 450 kg
- Torque 100 m.kg
- Speed port-starboard: 9 seconds
- 12 Volts
- Linear assembly for mechanical steering
- Variable flow internal assembly
- Single-rod hydraulic jack with integrated electrical by-pass.
- Compact design.
- Direct installation on the bar mains.
- Possibility of mounting the jack in the ceiling, floor or partition.
- Reversible unit with separate variable flow rate, allowing choice of installation location.
- Unit delivered assembled and purged with 1.20 meters of hose (length can be modified on request).
- Unit offering the best thrust/electricity consumption ratio on the market.
Lecomble & Schmitt linear units and assemblies for automatic piloting are perfectly suited to the requirements of coastal or deep-sea pleasure boating, as well as for professional or recreational fishing and sailing or motorboat racing.
They are simple to install and maintain and are made from materials resistant to the marine environment.
A wide range of products allows you to select the equipment best suited to the specific use of each boat.
These products come with a 2-year warranty and are fully compatible with all the major brands of electronics currently on the market.
